6.7L Cummins Mounting Adaptations – Engine Support Bracket, Rear – Remove

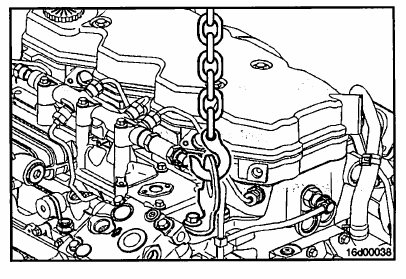

Use a hoist or lifting fixture to support the rear of the engine.

NOTE: When removing the rear engine mount fasteners, note the location of any shims or spacers used.

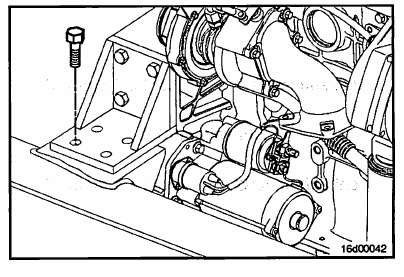

Remove the engine mount fasteners.

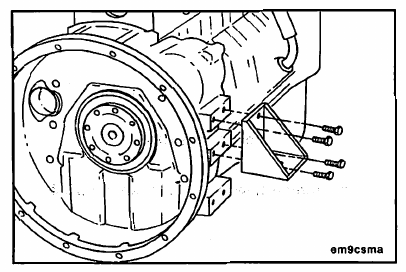

Remove the rear support cap screws and bracket.
