6.7L Cummins Cylinder Block – Crankshaft Wear Sleeve, Front – Install

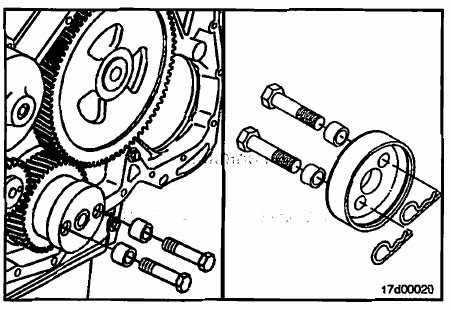

Use the Crankshaft Front Wear Sleeve Installation Tool, Part No. 3824500, to install the wear sleeve.

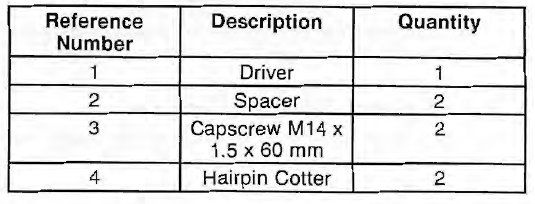

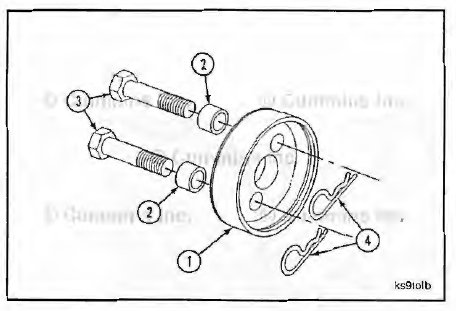

The driver will be used to install the wear sleeve to the correct position on the crankshaft. The kit consists of the
following:

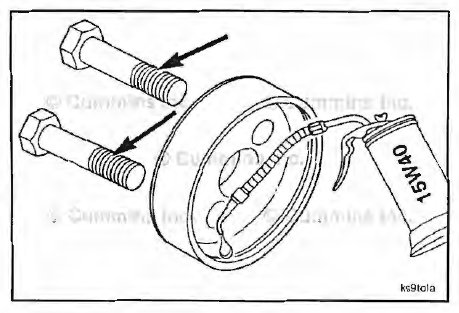

Apply a thin coat of clean 15W-40 lubricating oil to the inside diameter and capscrew threads.

Apply a thin coat of clean 15W-40 lubricating oil to the crankshaft flange.

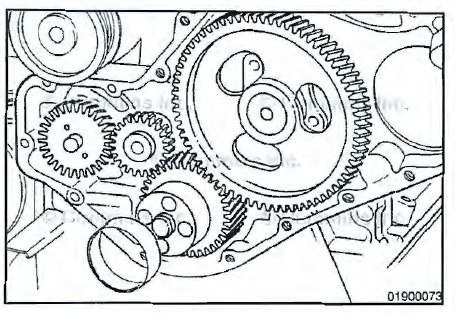

Position the chamfered end of the wear sleeve onto the end of the crankshaft.

Position the counterbore end of the driver onto the wear sleeve.

Install two capscrews (without spacers) through the driver and into the crankshaft capscrew holes.
Align the wear sleeve and driver perpendicular to the crankshaft.
Tighten the capscrews “finger-tight”.

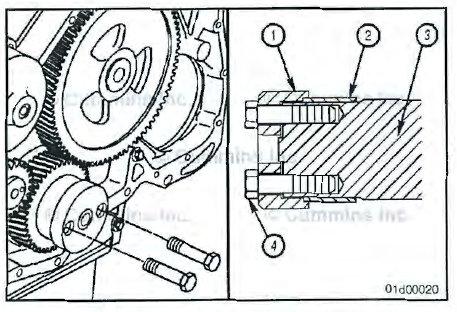

• Driver
• Wear Sleeve
• Crankshaft
• Capscrew

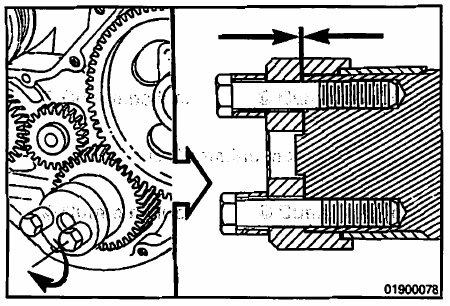

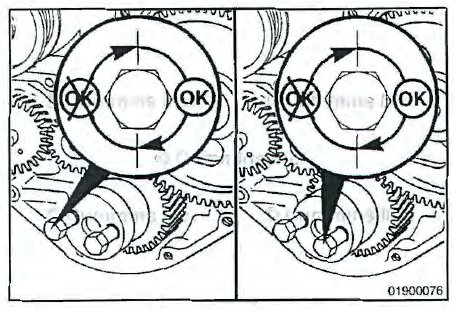

Alternately tighten the capscrews one-half turn until the sleeve is installed to a depth of approximately 16 mm
[0.625 in].
Torque Value: 20 N•m [ 15 ft-lb]

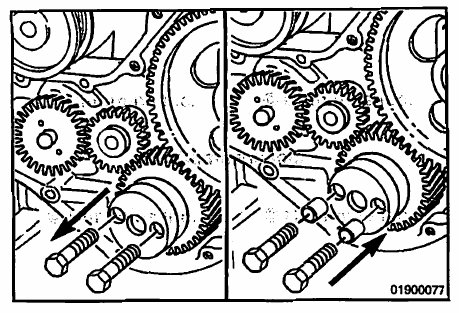

Remove the two capscrews.
Install the spacer on each capscrew.
Install the two capscrews.

Continue to tighten the capscrews alternately until the bottom of the driver contacts the end of the crankshaft.

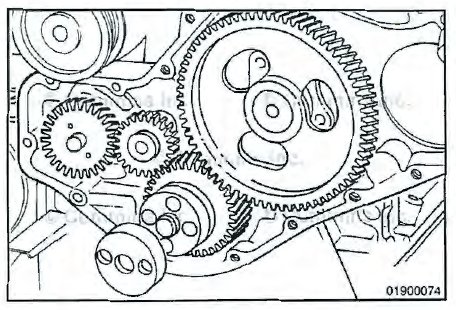

Remove the crankshaft front wear sleeve installation tool.
