GM/Detroit 6.5L – Engine Management – TIMING CONTROL – System Operation

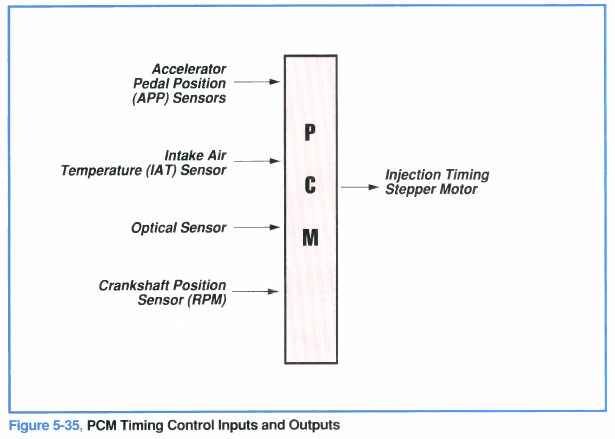

PCM timing control uses input data from the Accelerator Pedal Position (APP) sensors, intake air temperature sensor, optical sensor, and crankshaft position sensor (engine speed) to energize the injection timing stepper motor (figure 5-35).
