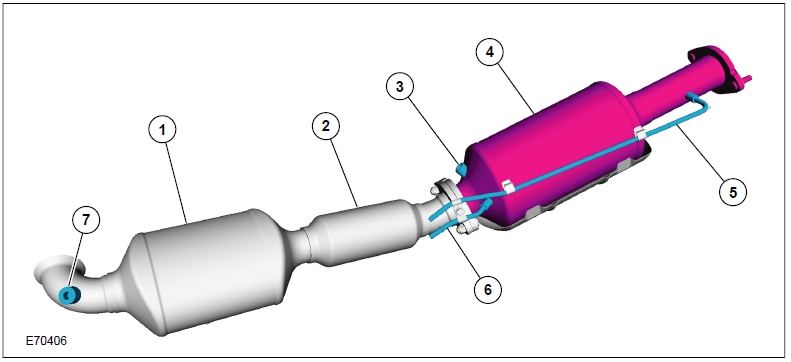

1 Oxidation catalytic converter
2 Flexible pipe
3 Location of exhaust gas temperature sensor – diesel particulate filter
4 Diesel particulate filter
5 Rear pipe – diesel particulate filter differential pressure sensor
6 Front pipe – diesel particulate filter differential pressure sensor
7 Location of exhaust gas temperature sensor – catalytic converter
