5.7 Hemi – FLEX PLATE – REMOVAL - Diesel Engines Troubleshooting

1. Remove the transmission.

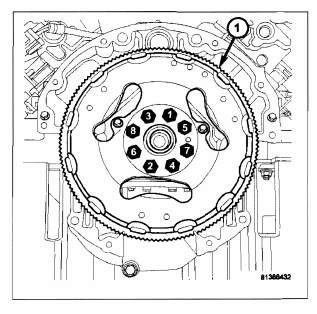

2. Remove the bolts and flex plate (1).
