2WD

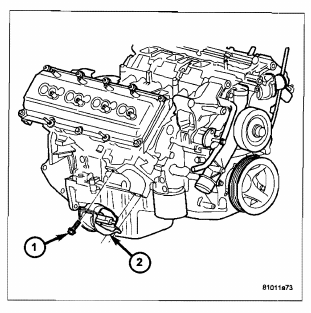

1. Install insulator (2) on the engine.
NOTE: For mount to engine block and left engine bracket to front axle bolts, apply Mopar® Lock and
Seal Adhesive, Medium Strength Thread locker.
2. Install upper and lower mount mounting bolts. lighten bolts to 61 N·m (45 ft. Ibs.).
3. Lower the engine using engine support fixture special tool # 8534.
4. Install mount through bolts.
5. lighten through bolts on both sides to 61 N·m (45 ft. Ibs.).
6. Lower vehicle.
7. Connect negative battery cable.
1. Install the right (8) and left (4) side engine mounts to the front axle. Torque nuts to 94 N·m (70 ft. Ibs.).
2. Raise the front axle into the frame and install the left and right side through bolts. Torque nuts to 94 N·m (70 ft.
Ibs.).
3. Insert the two upper through bolts into the right and left side engine mounts and loose assemble the two nuts
onto the through bolts.
4. Lower the engine using engine support fixture special tool # 8534, until the left and right side engine brackets
rest on the through bolts, and the lower engine bracket through holes align with the engine mounts, and the left
engine bracket holes align with the front axle slots.
5. Loose assemble the 3 bolts that attach the front axle to the left engine bracket.
6. Loose assemble the lower through bolts.
7. Torque the nuts for the 4 through bolts to 101 N·m (75 It Ibs.).
8. Torque the 3 bolts that attach the front axle to the left engine bracket to 101 N·m (75 ft. Ibs.).
9. Install the engine oil filter, if removed.
10. Install the front crossmember (Refer to 13 – FRAME & BUMPERS/FRAME/FRONT CROSSMEMBER – INSTALLATION).
11. Install the skid plate.
12. Lower the vehicle.
13. Reconnect the negative battery cable.
