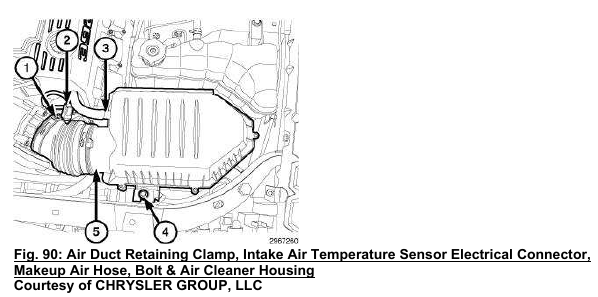

1. While sliding the air duct onto the throttle body, lower the air cleaner housing (5) into position
and align the locating pin on the bottom of the housing.
2. Install the air cleaner housing retaining bolt (4) and tighten to 5 N.m (44 in. lbs.).
3. Install the makeup air hose (3) at the air cleaner housing.
4. Connect the intake air temperature sensor electrical connector (2).
5. Position the air duct retaining clamp (1) at the throttle body and tighten to 3 N.m (30 in. lbs.).
