6.7L Cummins Mounting Adaptations – Flywheel Ring Gear – Assemble

Heat the new ring gear for 20 minutes in an oven preheated to 127°C [261 °F].

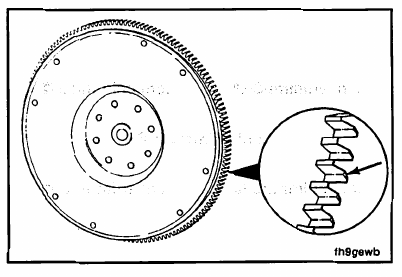

The ring gear must be installed so the bevel on the teeth is toward the crankshaft side of the flywheel.
Install the ring gear.
