Rocker Lever Cover Mounted Crankcase Breather
NOTE: A new rocker lever housing gasket must be used when the rocker lever housing is removed.

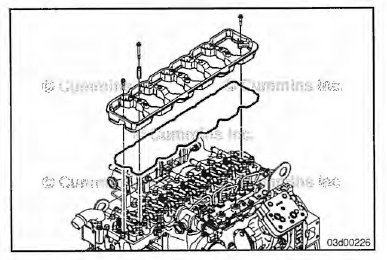

Install a new rocker lever housing gasket into the groove of the rocker lever housing. Start by pressing the molded gasket into the corners of the housing, then press the remaining gasket into the housing.
Install the rocker lever housing.
NOTE: The outer-most rocker lever housing capscrews are shorter in length than the inner capscrews.
Install the rocker lever housing mounting capscrews.
Tighten the mounting capscrews, starting with the center capscrews and working outward.
Torque Value: 24 N•m [ 212 in-lb ]
Rear Engine Mounted Crankcase Breather
NOTE: A new rocker lever housing gasket must be used when the rocker lever housing is removed.

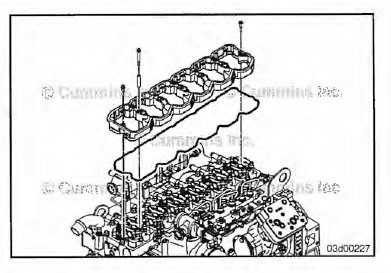

Install a new rocker lever housing gasket into the groove of the rocker lever housing. Start by pressing the molded
gasket into the corners of the housing, then press the remaining gasket into the housing.
Install the rocker lever housing.
NOTE: The outer-most rocker lever housing capscrews are shorter in length than the inner capscrews.
Install the rocker lever housing mounting capscrews.
Tighten the mounting capscrews, starting with the center capscrews and working outward .
Torque Value: 24 N•m [ 212 in-lb ]

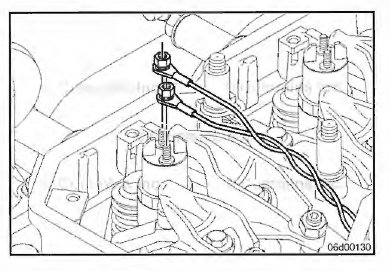

Con nect the inj ector solenoid wires to each injector.
Use Cummins® Service Tool, Part Number 3823208, or a torque wrench to tighten the solenoid wires.
Torque Value: 1.5 N•m [ 13 in-lb]
