Install

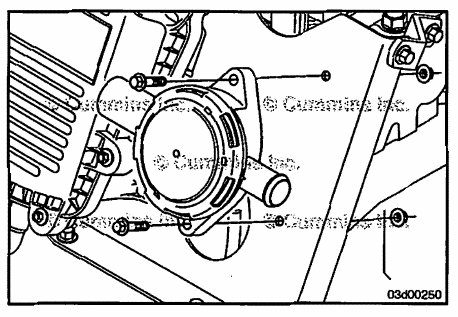

Rear Engine Mounted Crankcase Breather
NOTE: When installing the crankcase ventilation valve, the arrow on the housing must point in the direction of the
crankcase gas flow. Crankcase gas flow is from the crankcase ventilation filter housing, through the crankcase ventilation valve, to the air intake plumbing.
Connect the hose connection between the crankcase ventilation filter housing and the crankcase ventilation valve.
Install the closed crankcase ventilation valve mounting capscrews.
Tighten the mounting capscrews.
Torque Value: 18 N•m [ 159 in-lb ]
