Install
Front Gear Train

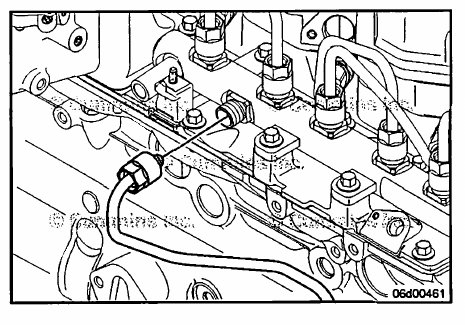

Install and tighten the fuel rail supply line at the fuel pump and the fuel rail.
Torque Value: 40 N•m [ 30 ft-lb ]
Install the fuel rail supply line support bracket mounting fasteners.
Tighten the mounting fasteners.
Torque Value: 24 N•m [ 212 in-lb]
NOTE: Make sure that the fuel line is not rubbing on any other components.
