6.7L Cummins Engine Assembly – Lubricating Oil Suction Tube (Block- Mounted)

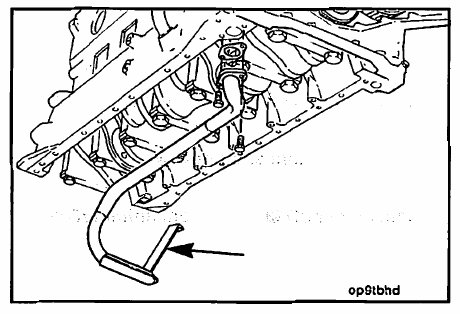

NOTE: Take care to ensure the oil suction tube gasket openings align with both the oil suction tube and the block.
Install the lubricating oil suction tube gasket and suction tube.
Install and tighten the suction tube mounting capscrews.
Torque Value: 24 N•m [ 212 in-lb ]
