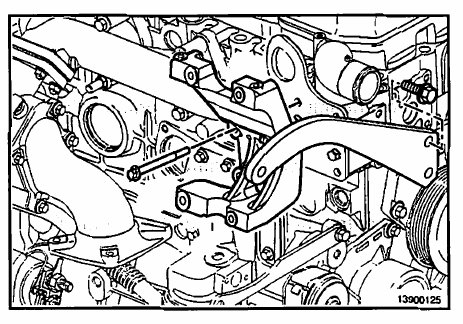

Spool Mount:
Remove the upper alternator bracket mounting capscrews.
Remove the alternator bracket.

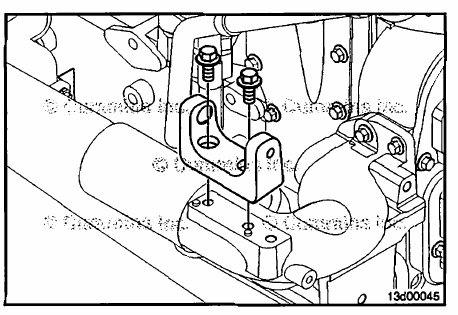

NOTE: On some applications, the lower alternator bracketand water inlet are combined in the same bracket. Referto Procedure 008-082 in Section 8, where applicable.
Remove the lower alternator bracket mounting capscrews.
Remove the alternator bracket.

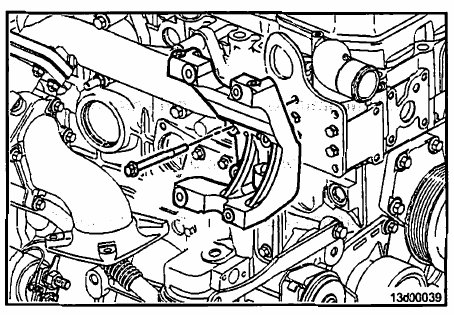

Pad Mount:
Remove the alternator bracket mounting capscrews.
Remove the alternator bracket.

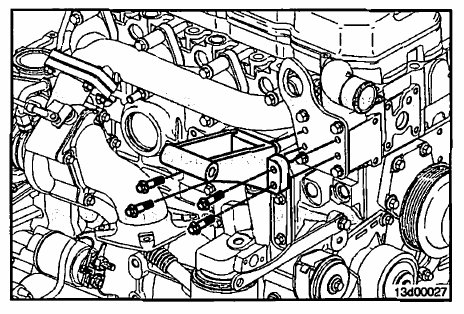

Hinge Mount:
Remove the upper alternator bracket mounting capscrews.
Remove the lower alternator bracket mounting capscrews.
Remove the alternator brackets.
