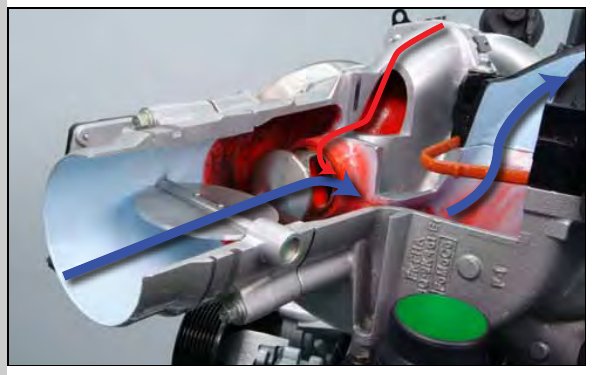

After leaving the turbocharger outlet the air goes through the CAC and then through the intake throttle body before it is mixed with exhaust gases from the EGR valve. The blue line represents the flow of cooled intake air and the red line represents the flow of EGR gases.
