Replacement
Preparatory Steps:
• Disconnect the cold starting aid, if used.
• Remove the air crossover tube, if used.
• Disconnect the charged air cooler hose, if used.
• Remove the high pressure fuel lines.
Removal
10 mm

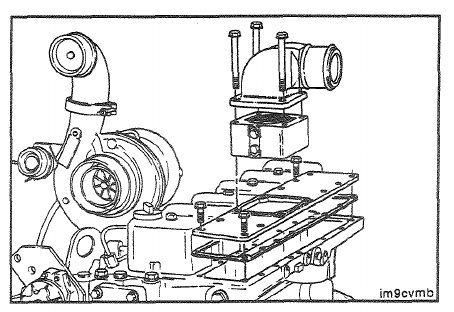

Remove the manifold cover, gasket, and grid heater if equipped.
Cleaning

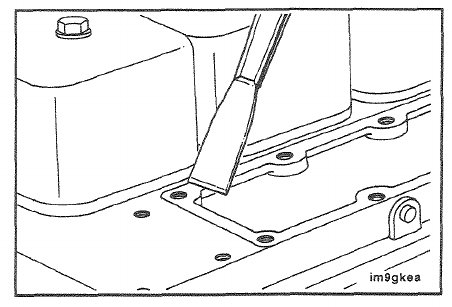

Clean the sealing surface.
NOTE: Keep the gasket material and any other material out of the air intake.
Installation
10 mm

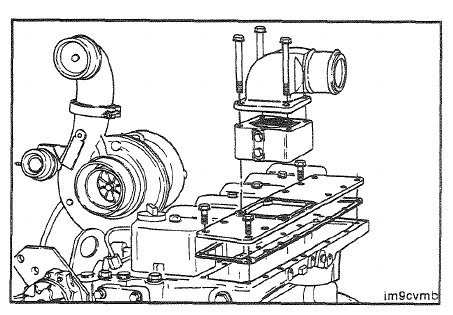

Install the cover and a new gasket.
Torque Value; 24 N®m [18 ft-lb]

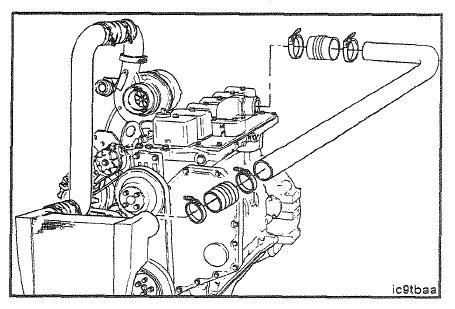

Assemble the intake piping and connect the cold starting aid if used.
Torque clamps to 8 N®m [75 in-lb].
