Cummins 4BT – Lubricating Oil Pump – Replacement

Preparatory Step:
• Remove the drive belt.
NOTE: Removal is easier if the crankshaft pulley is loosened before removing the belt.

15 mm

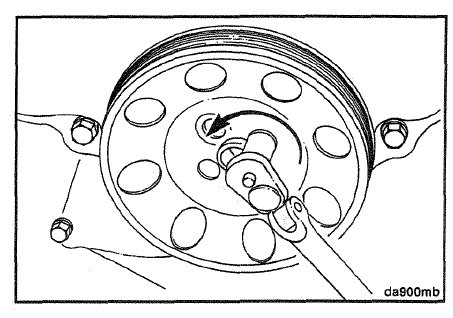

Remove the crankshaft pulley.

10 mm

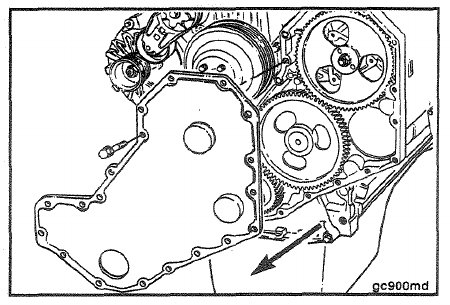

Remove the front cover.
