Cummins N14 – Cam Follower Assembly – Rebuild – Disassembly

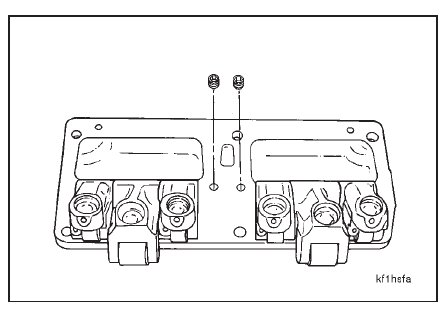

Remove the two locking screws.
NOTE: Each cam follower housing assembly consists of two shaft assemblies secured in a common center support with two locking screws.

Caution: Do not push the cup plug through the cam follower lever shaft bores. The bores will be damaged.

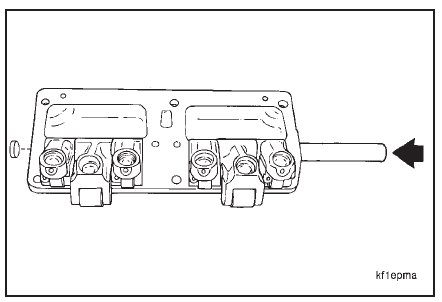

Use expansion plug driver, Part No. 3376813, and a mallet to remove the cup plugs. Push the cup plug and
the shafts through one end of the housing until the cup plug on the opposite end of the housing is pushed from
the housing bore.

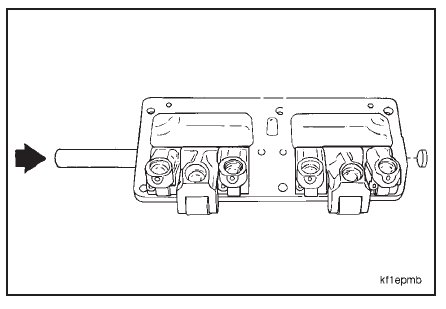

Push the shafts the opposite direction through the housing until the cup plug on the other end of the housing is
pushed from the housing bore.
