Cummins N14 – Cylinder Heads – Removal

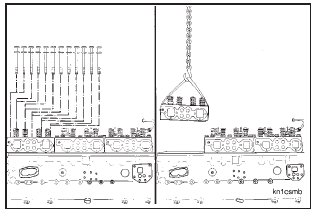

Remove the 12 capscrews and washers from each cylinder head.
Lift the cylinder heads from the block, and remove the cylinder head gaskets.

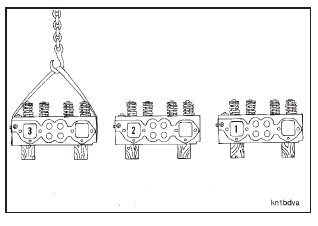

Caution: To prevent damage to the head gasket surface, put the cylinder heads on wooden blocks when they are removed.
