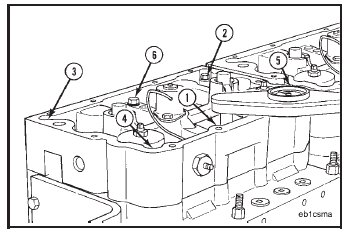

Install two guide pins into each rocker lever housing.
Install new C-Brake housing gaskets and the C-Brakes.
Remove the guide pins.

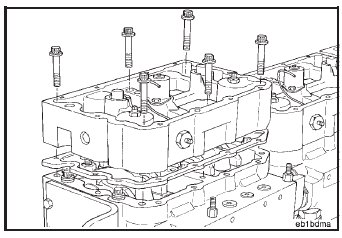

Install the C-Brake capscrews. Tighten the capscrews in the sequence shown to the torque value listed below.
Torque Value: 102 N•m [
