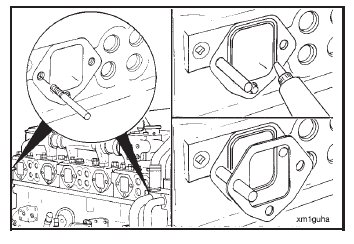

Install two guide studs.
Use an adhesive or heavy grease to hold the gaskets in place on the cylinder head.
NOTE: The side of the gasket marked ‘‘OUT’’ must be away from the cylinder heads.

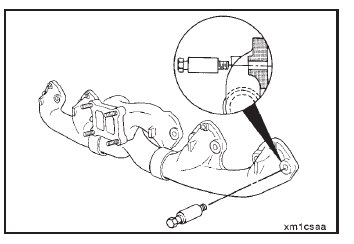

Special capscrews with spacers are required for the N14 exhaust manifold.
Do not use short capscrews.
Warning: Because this assembly weighs more than 23 kg [50 lbs], two people or a hoist will be required to lift the exhaust manifold assembly to avoid personal injury.
Install the exhaust manifold and ten capscrews.
Remove the guide studs, and install the remaining two capscrews.

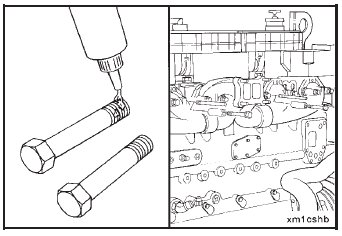

NOTE: To aid in future capscrew removal, apply a film of high temperature anti-seize compound, Part No. 3823097,
to the capscrew threads.

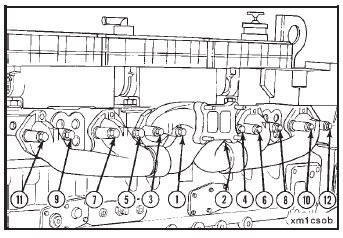

Tighten the capscrews in two steps in the sequence shown.
Torque Values: Step 1 47 N•m [35 ft-lb]
Step 2 81 N•m [60 ft-lb]
