Cummins N14 – Lubricating Oil Pump Driven Gear Bushing – Replacement – Inspection

Visually inspect the bushing bore in the driven gear for damage.

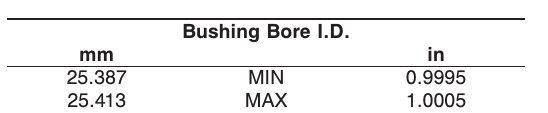

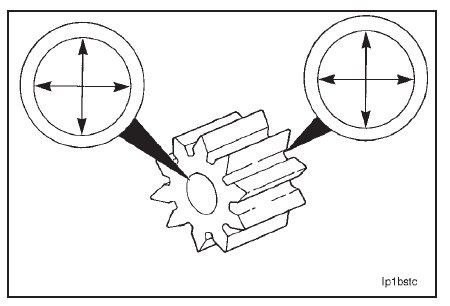

Measure the inside diameter of the bushing bore in the oil pump driven gear.

NOTE: If the bushing bore inside diameter is not within specifications, the gear must be replaced.
