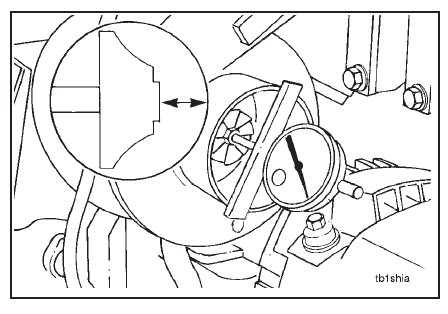

Measure the axial clearance (end to end), using dial depth gauge, Part No. ST-537.
Push the rotor assembly away from the gauge.
Set the gauge on zero (0).
Push the rotor assembly toward the gauge and record the clearance.
Replace the turbocharger if the axial clearance does not meet the specifications.
