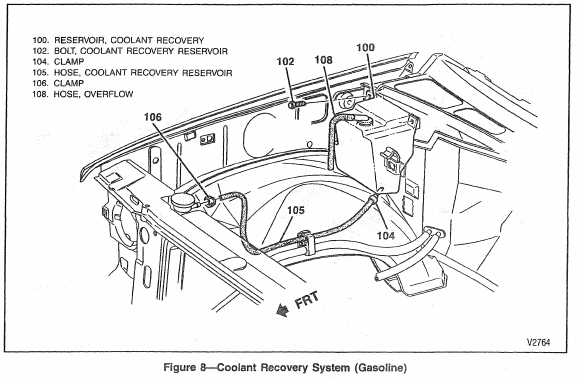

Remove or Disconnect (Figures 8 and 9)
1. Coolant from the recovery tank.
2. Clamps.
3. Coolant recovery reservoir hose from the recovery tank.
4. Overflow hose.
5. Bolts.
6. Coolant recovery tank from the vehicle.
Install or Connect (Figures 8 and 9)
1. Coolant recovery tank to the vehicle.
2. Bolts.
Tighten
• Bolts to 10 N.m (89 Ibs. in.).
3. Coolant overflow hose to the recovery tank.
4. Coolant recovery reservoir hose to the recovery tank.
5. Clamps.
6. Coolant in the recovery tank.
