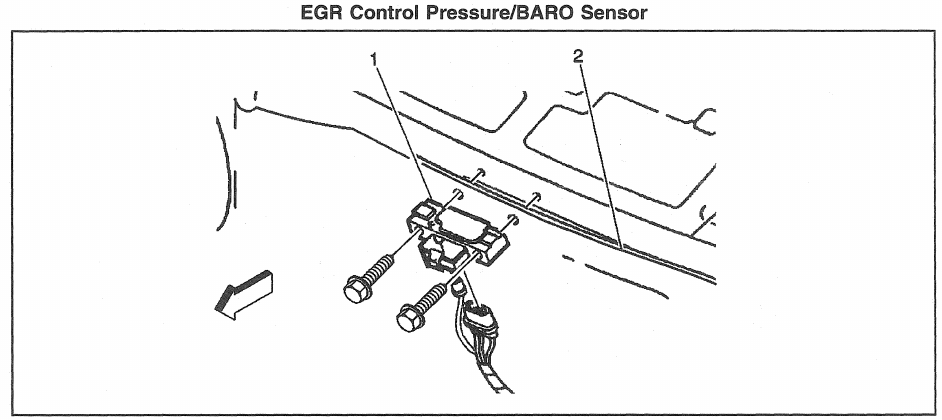

GM/Detroit 6.5L ENGINE CONTROLS – EGR Control Pressure/BARO Sensor

Legend
(1)EGR Control Pressure/BARO Sensor
(2) Engine/Passenger Compartment Divider (Engine Cowl)

GM/Detroit 6.5L ENGINE CONTROLS - IAT Sensor
Legend (1) Intake Air Temperature (IAT) Sensor (2) Intake Manifold
GM/Detroit 6.5L - Engine Management - EGR CONTROL - EGR VALVE, EGR SOLENOID, AND EGR VENT SOLENOID
Description The EGR valve is located atop the intake manifold in a port that is…
GM/Detroit 6.5L ENGINE CONTROLS - Oil Pressure Switch (OPS)
Legend (1) Oil Pressure Switch (OPS) (2) Engine Block
GM/Detroit 6.5L ENGINE CONTROLS - Crankshaft Position (CKP) Sensor
Legend (1) Front Engine Cover (2) Crankshaft Position (CKP) Sensor (3) Mounting Bolt
GM/Detroit 6.5L - Engine Management - EGR CONTROL - System Operation
The PCM monitors input from the EGR control pressure/baro sensor, APP sensors, crankshaft position sensor…
