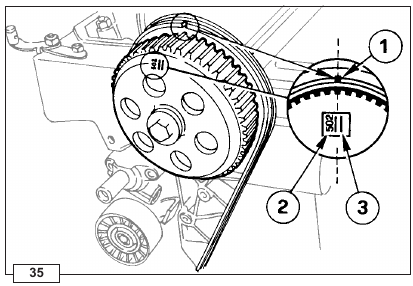

KOHLER KDW 702 – Camshaft timing pulley – Reference marks

1 Timing reference mark on cylinder head.
2 Camshaft pulley timing mark
3 Camshaft pulley timing mark, for KDW, 702, 1003, and 1404 engines.
