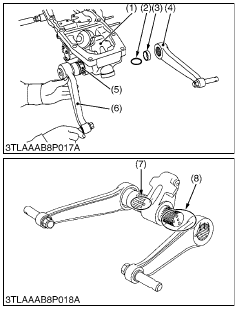

1. Disconnect the position control rod from feedback lever.
2. Remove the lift arm setting screws.
3. Draw out the hydraulic arm shaft (5) and right lift arm (6) as a unit.
4. Take out the hydraulic arm (1).
5. Remove the collar (3) and O-ring (2).
(When reassembling)
• Align the alignment marks of the hydraulic arm and hydraulic arm shaft (7).
• Align the alignment marks of the lift arm and hydraulic arm shaft (8).
• Apply grease to the right and left bushings of hydraulic cylinder block and O-rings (2).
• Take care not to damage the O-ring (2).
