KUBOTA – L2501 – TRANSMISSION – PREPARATION – Electrical Wiring

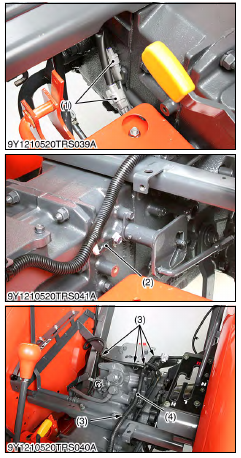

1. Disconnect the 2P connectors (1).
2. Disconnect the ground cable (2).
3. Remove the clips (3) and the wiring (4).

KUBOTA - L2501 - TRANSMISSION - PREPARATION - Electrical Wiring 1
1. Disconnect the 4P connector (1) and the 1P connector (2). 2. Remove the seat…
KUBOTA - L2501 - TRANSMISSION - PREPARATION - Draining the Transmission Fluid
1. Remove the drain plugs (1) at the bottom of the transmission case and drain…
KUBOTA - L2501 - TRANSMISSION - PREPARATION - Outer Components
1. Remove the seat (1). 2. Remove the grip (2) and the floor sheet cover…
KUBOTA - L2501 - TRANSMISSION - PREPARATION - Three Point Linkage
1. Remove the top link (1). 2. Remove the rubber spring (2), the lift rod…
KUBOTA - L2501 - CLUTCH - Electrical Wirings 2
1. Disconnect the wiring (1). 2. Disconnect the 4P connector (3), the starter relay (2),…
