6.7L Cummins Electrical Equipment – Starting Motor – Measure

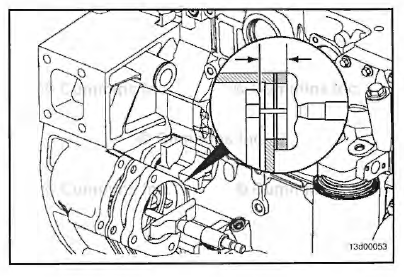

Use an inside micrometer or a vernier caliper to measure the distance from the starting motor mounting flange to
the forward face of the front side of the flywheel ring gear.
NOTE: Include any spacers previously removed when completing the measurement.

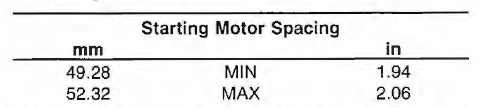

Add or remove spacers as necessary to achieve the correct starting motor spacing.
