Measure

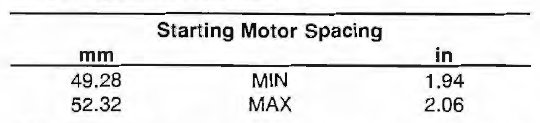

Use an inside micrometer or a vernier caliper to measure the distance from the starting motor mounting flange to
the forward face of the front side of the flywheel ring gear.
NOTE: Include any spacers previously removed when completing the measurement.
Add or remove spacers as necessary to achieve the correct starting motor spacing.
Install
For engines with wet flywheel housings, apply a 1.5 to 2.0 mm [0.06 to 0.09 in] wide bead of sealant, Part Number
3164067, to the flywheel housing starting motor mounting flange.
NOTE: If a starting motor spacer is required , make sure to apply sealant to the side of the spacer that contacts the
starting motor.

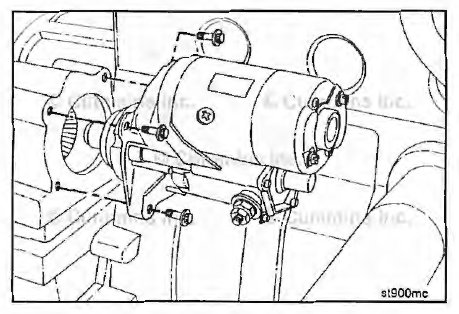

Install the three capscrews, the starting motor, and starting motor spacer (if required) .
Torque Value: 43 N•m [ 32 ft-lb ]
