6.7L Cummins Engine Assembly – Cylinder Head Gasket

Install
A new gasket must be installed. Do not reuse an old gasket.

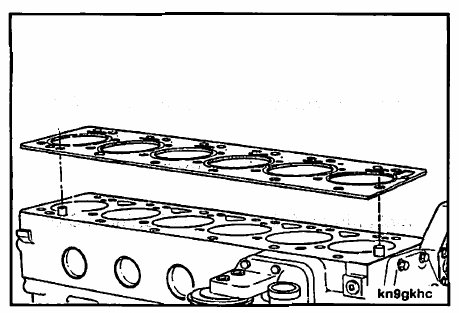

Install the head gasket.
