6.7L Cummins Engine Disassembly – Camshaft Gear (Camshaft Installed)

Rear Gear Train

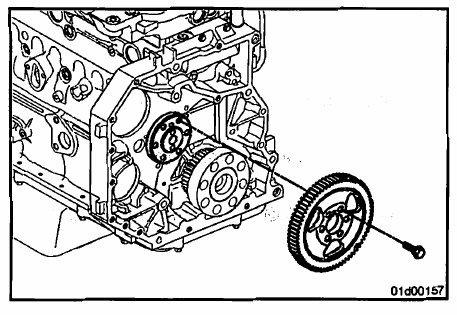

Remove the camshaft gear capscrews.
Remove the camshaft gear.
NOTE: On front gear train engines, the camshaft gear is removed with the camshaft.
