6.7L Cummins Engine Disassembly – Crankshaft

NOTE: Lift the crankshaft straight up to avoid damage to the crankshaft and cylinder block.

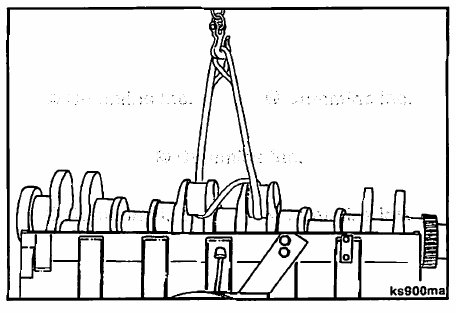

Install nylon lift sling, Part Number 3375957, around the number 3 and number 4 rod bearing journals.
Attach the sling to a hoist and remove the crankshaft.

Remove the upper main bearings.

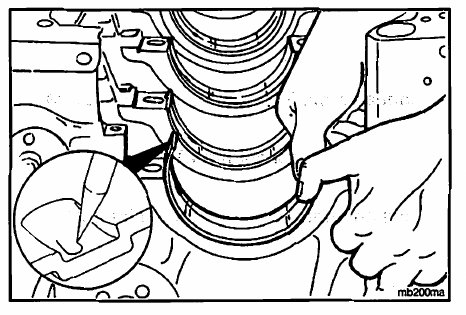

Use an awl to mark the bearing position in the tang area.
NOTE: Mark the bearing location for future identification or possible failure analysis.
