6.7L Cummins Engine Disassembly – Drive Belt, Cooling Fan

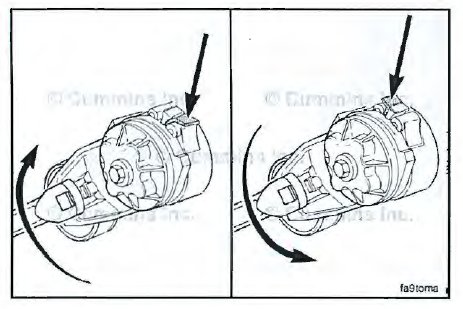

The belt tensioner winds in the direction that the spring tang is bent over the tensioner body. To loosen the tension on the belt, rotate the tensioner to wind the spring tighter.

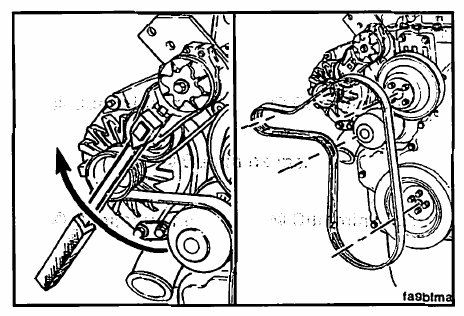

Pivot the tensioner in the direction of the spring tang to remove the belt.
Remove the belt.
