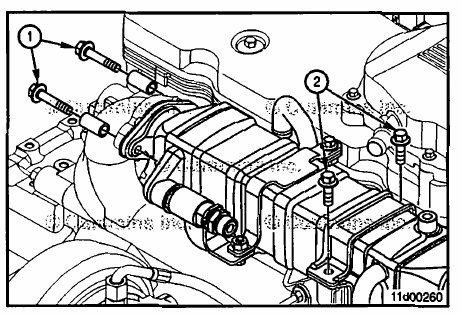

Remove the EGR cooler to exhaust manifold capscrews and spacers (1) and the EGR cooler mounting capscrews (2).
Remove the EGR assembly.
Cover open connections with protective caps from the Air Handling Clean Care Kit, Part Number 4919498.
NOTE: For Rear Gear Train engines, if pressure checking or removing the EGR cooler as part of another repair, the
EGR cooler assembly does not need to be disassembled further.
