6.7L Cummins Engine Disassembly – Gear Housing, Rear

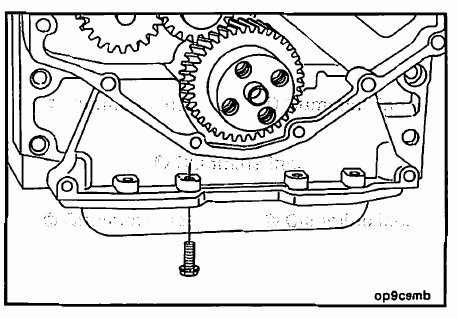

Remove the oil pan to rear gear housing capscrews.

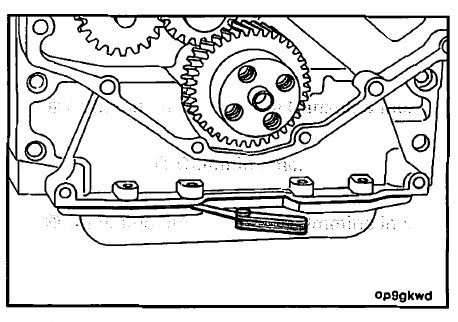

Use a feeler gauge to separate the lubricating oil pan gasket from the gear housing.

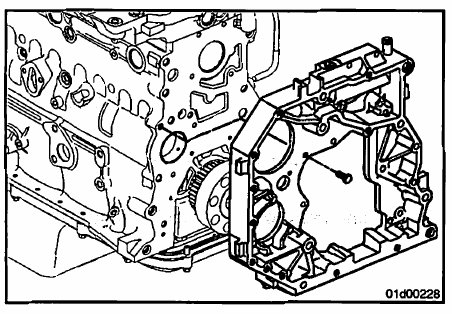

Remove the rear gear housing capscrews and housing.
