6.7L Cummins Engine Disassembly – Gear Housing, Front

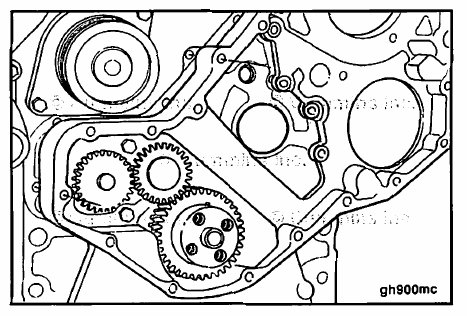

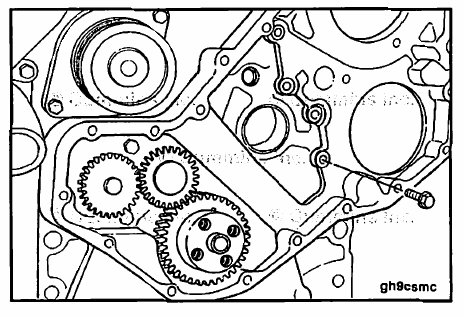

Remove the gear housing capscrews.
Note the location of the gear housing capscrews as they are removed. Some of the capscrews are an internal torx
fastener and must be installed in the same location as removed to maintain proper clearance.

Use a plastic hammer to loosen the front gear housing.
Remove the gear housing.
