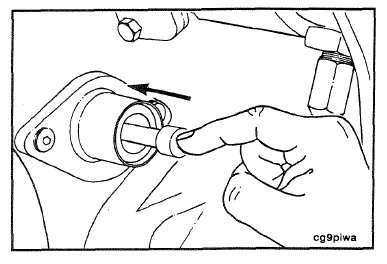

Rotate the crankshaft to TDC.
12 mm

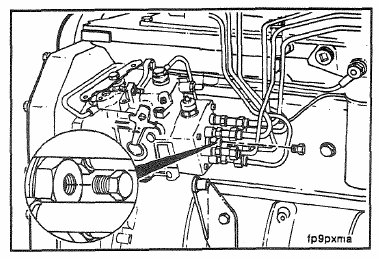

Remove the plug from the end of the pump.

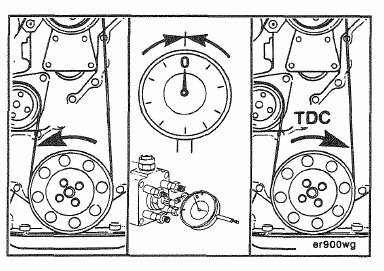

Bar the crankshaft in the direction opposite engine rotation until the indicator needle stops moving. Adjust the
indicator face to read zero.
Rotate the crankshaft back to TDC and count the number of revolutions of the indicator needle. The reading shown
when the engine timing pin engages is the amount of plunger lift the pump has at that point.
13 mm

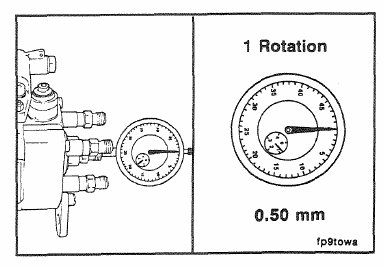

Rotate the pump on the mounting studs until the indicator reads the correct value for plunger lift. This illustration
gives an example of the indicator readings for the various plunger lift values.
Tighten the flange mounting nuts.
Torque Value: 24 N®m [18 ft-lb]
12 mm

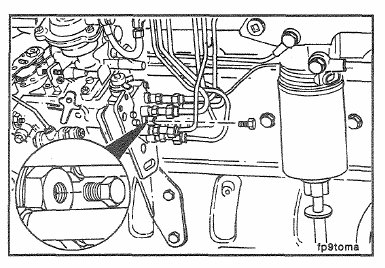

Remove the timing indicator. Install the plug.
Torque Value: 10 N»m [7.5 ft-lb]
