Cummins N14 – Alternator Mounting Bracket – Installation

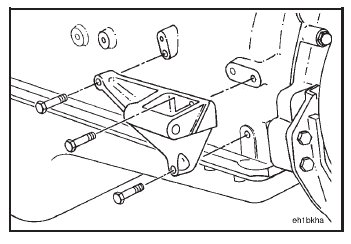

Install the alternator mounting bracket. Tighten the mounting capscrews.
Torque Value: 47 N•m [35 ft-lb]
