Cummins N14 – Lubricating Oil Cooler Assembly – Installation

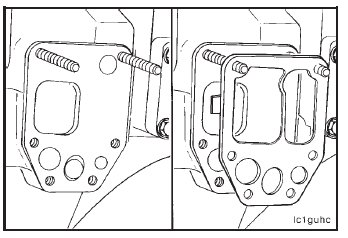

Install two guide studs in the oil cooler support mounting holes in the cylinder block.
Install a new oil cooler support gasket over the guide studs.

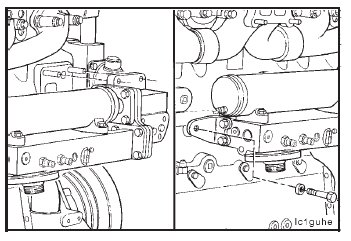

Install the oil cooler assembly over the guide studs, and push it against the cylinder block.
Install the oil cooler support bracket capscrew. Do not tighten at this time.

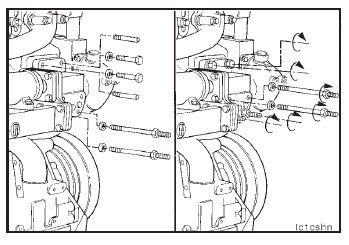

Install four of the support mounting capscrews, and remove the two guide studs.
Install the two remaining capscrews, and tighten all support capscrews.
Torque Value: 47 N•m [35 ft-lb]

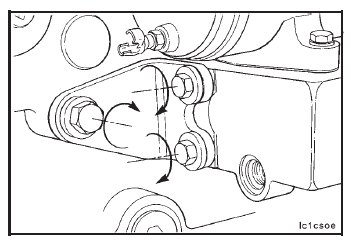

Finish mounting of the support bracket. First, loosen the two capscrews which hold the oil cooler support bracket
to the rear of the oil cooler housing.
Then, alternately and evenly tighten the block mounting capscrew and the oil cooler housing capscrews. (Beginning
with the block mounting capscrew.)
Torque Value: 47 N•m [35 ft-lb]
