Cummins N14 Boost Pressure Sensor Location and Installation

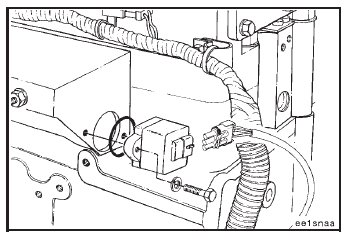

Install the sensor on the engine. Tighten the capscrews.
Torque Value: 30 N•m [22 ft-lb]
Make sure the sensor has a sealing ring on the bottom side of the sensor.

Note: N14 boost pressure sensor is located at the rear of the intake manifold point to the closest to truck.
