Cummins N14 – Fuel Tubes, Fittings, and Mounting Parts – Cleaning

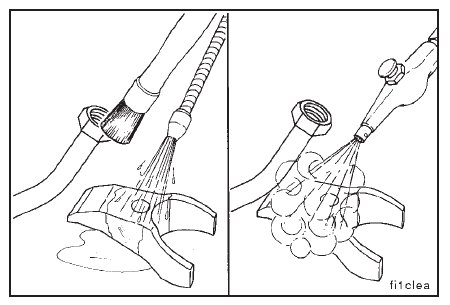

Use solvent to clean the fuel tubes, fittings, and parts. Dry with compressed air.
