Cleaning
Warning: When using a steam cleaner, wear protective clothing and safety glasses or a face shield. Hot steam
can cause serious personal injury.
Use steam to clean the starting motor. Dry with compressed air.
Inspection

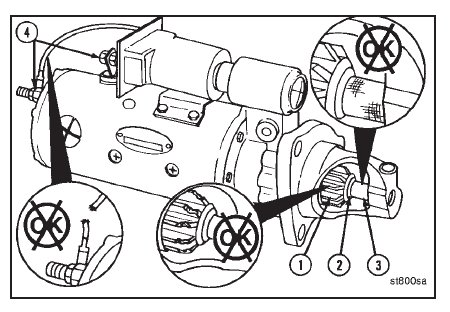

Visually inspect the gear (1) for cracked or broken teeth.
Visually inspect the drive bushing (2) and the gear shaft (3) for excessive wear or damage.
Visually inspect the terminal posts (4) for loose or broken connections.
NOTE: If the starting motor parts are damaged or the posts are loose or damaged, the starting motor must be repaired
or rebuilt. Refer to the electrical equipment manufacturer’s specifications to rebuild the starting motor.
