Install the water transfer tube with new o-rings into the water pump housing. Apply a non-petroleum based lubricant such as soap or vegetable oil to the o-rings on each end of the tube and to the bores in the water pump
housing and the thermostat housing cover.

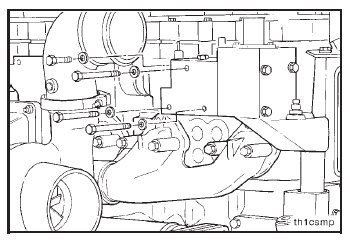

Install the thermostat housing assembly and mounting gasket on the rocker lever housing and onto the water
transfer tube.
Install the four mounting capscrews and washers.
Tighten the capscrews.
Torque Value: 47 N•m [35 ft-lb]
