Cummins N14 – Water Pump Assembly – Rebuild – Cleaning

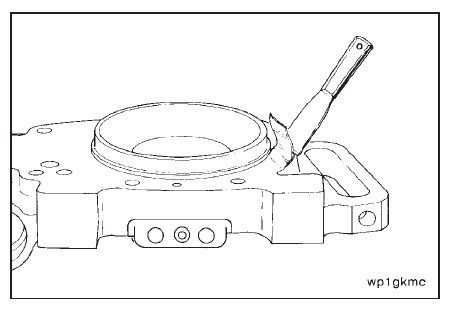

Use a gasket scraper to remove the gasket material from the gasket sealing surfaces.

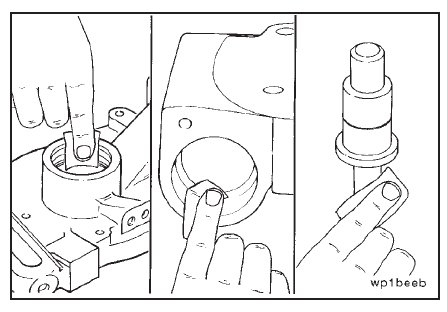

Use Scotch-Briteᮋ 7448, Part No. 3823258, to clean the bearing and the oil seal bores in the water pump body.
Use Scotch-Briteᮋ 7448, Part No. 3823258, to clean the inside diameter of the coolant transfer tube bore in the
water pump body.
Use Scotch-Briteᮋ 7448, Part No. 3823258, to clean the water pump shaft.

Use solvent to clean the water pump parts. Dry with compressed air.
