FUSO 4M4 – FUEL AND ENGINE CONTROL – ACCELERATOR PEDAL

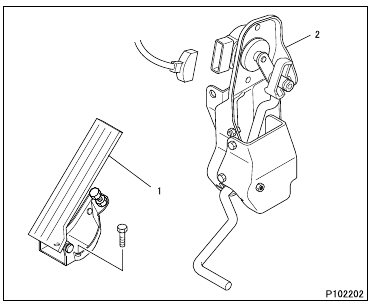

Removal sequence
1 Accelerator pedal (See later sections.)
2 Accelerator link (See later sections.)

Installation sequence
Follow the removal sequence in reverse.

Removal procedure

Removal: Accelerator pedal
• Using pliers, pinch the hook of the stopper on the accelerator pedal. Separate the stopper from the pedal while turning the hook by about 15 degrees.

Installation procedure

Installation: Accelerator pedal
• Press the accelerator pedal until the accelerator lever touches the accelerator link lever stopper.
• Check that the clearance between the stopper and the stopper bolt contact surface of the pedal is as indicated in the illustration.
• If the clearance is not within the indicated value range, adjust the stopper bolt and lock it with the nut.
