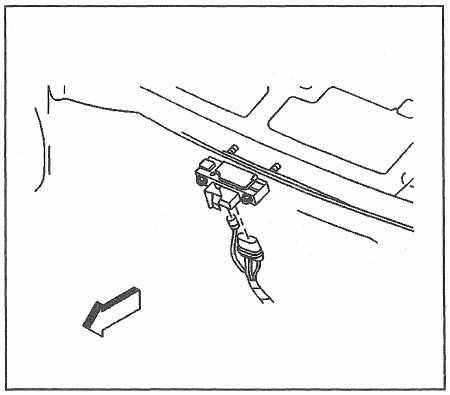

GM/Detroit 6.5L ENGINE CONTROLS – EGR Control Pressure Sensor Replacement

Removal Procedure
1. Remove negative battery cables.
2. Remove the vacuum harness assembly.
3. Remove the electrical connector.
4. Remove the mounting bolts.
5. Remove the sensor.

Installation Procedure
Notice : Refer to Fastener Notice in Cautions and Notices.
1. Install the mounting bolts with the sensor.
Tighten
Tighten the mounting bolts to 3.5 N-m (27 lb in).
2. Install the electrical connector.
3. Install the vacuum harness.
4. Install the negative battery cables.
