KUBOTA – L2501 – ELECTRICAL SYSTEM – CHECKING AND ADJUSTING – INSTRUMENT PANEL – Functional Check of Coolant Temperature

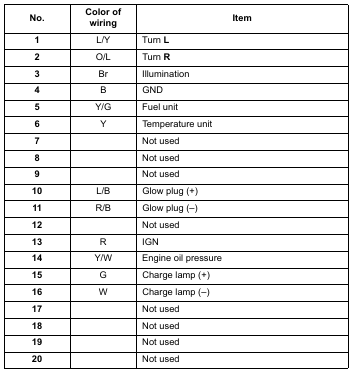

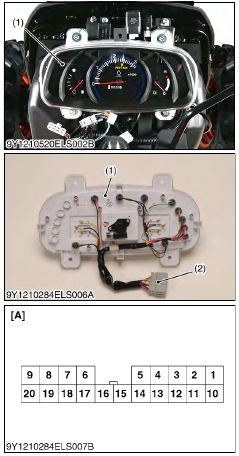

1. Check the continuity with an ohmmeter across the 6 terminal to 13 terminal and the 6 terminal to 4 terminal on panel board.
2. If infinity is indicated, the coolant temperature gauge is faulty.
