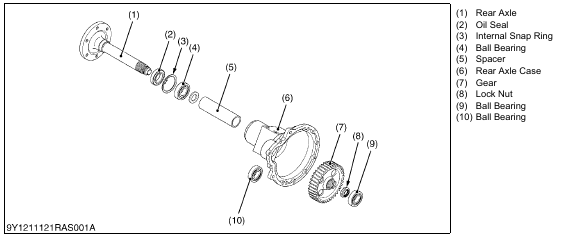

1. Remove the ball bearing (9) with a puller.
2. Remove the stake of lock nut (8).
3. Secure the rear axle (1) in a vise and remove the lock nut.
4. Take out the gear (7) and spacer (5).
5. Tap out the rear axle (1).
(When reassembling)
• Apply grease to the oil seal (2) and install it.
• Replace the lock nut with new one, and after tightening it to specified torque, stake it firmly.

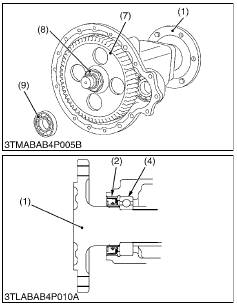

• Assemble the oil seal (2) with correct direction. (See figure on the left.)
