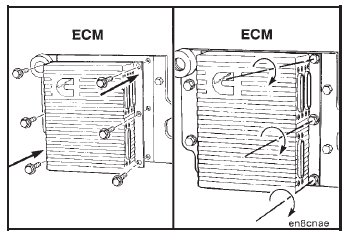

Install theECMto the cooling plate. Tighten the six metric capscrews.
Torque Value: 7.3 N•m [65 in-lb]
Make sure the star washer is installed under one of the capscrews.
Caution: Do not paint the back side of the ECM. Make sure there is no grease or dirt between the ECM and the
cooling plate.
