Cummins N14 – Water Header Covers – Installation

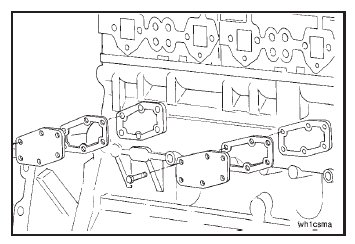

Install new water header cover gaskets and the covers.
Tighten the capscrews.
Torque Value: 12 N•m [110 in-lb]
